We're working on testing and rolling out features of Microsoft Teams internally that will eventually allow us to migrate to Teams as our Enterprise Voice. During the process, one of my goals was to get the Calendar tab working inside the Teams client so that we could see and schedule meetings on our Outlook calendar from Teams. After a lot of reading and researching, it became apparent that the only way to get this working would be to enable Hybrid Exchange so that Teams (sitting in the O365 cloud) could talk to my mailbox (sitting on-prem).

I configured our Exchange server for hybrid connection and let it sit overnight (thanks to Microsoft replication delays). The next morning, as I started looking into this again, I got a message from a coworker about how nice and helpful the Calendar tab was. I hadn't received it, yet, but was excited that it had started rolling out. Several hours later, the tab still wasn't present for me, but for everyone else that I spot-checked, the tab had appeared.

Looking through the logs from my Teams client, the error message kept saying that my mailbox could not be found. Surely this couldn't be the case because my account was set up the same as everyone else. The only thing I could think of at the time was that it had to absolutely be a permissions issue.

Continuing research over the next day or two, I discovered that the error message actually was accurate. I had attempted to migrate my mailbox to Exchange Online on a whim, but when I licensed my account in O365 for Exchange Online, it started building a new mailbox automatically. Normally, Exchange Online is aware of synced accounts that have on-premise mailboxes and will not create a new mailbox in that instance. So somewhere in the syncing process, my Azure AD account and on-prem AD account were not completely talking to each other (which didn't make complete sense, because the password hash sync was still working fine).

I discovered that the sourceAnchor (ImmutableID / ms-DS-ConsistencyGuid) between the two accounts was different. Since it's impossible to update an ImmutableID attribute, I decided to update the ms-DS-ConsistencyGuid instead. Converting the ImmutableID from Base64 to Hex, you can then easily update the ms-DS-ConsistencyGuid on the source side.

However, before doing that, I needed to clean up Exchange in Azure. You see, even if you unlicensed a user for Exchange Online, Azure will only disconnect the mailbox and tombstone it for 30 days. I needed to purge the Exchange attributes on my AzureAD account so that I didn't have to wait 30 days.

https://techcommunity.microsoft.com/t5/exchange-team-blog/permanently-clear-previous-mailbox-info/ba-p/607619

The solution is simple: Connect to the MSOL service in Powershell (Connect-MSOL), run "Set-User <upn> -PermanentlyClearPreviousMailboxInfo"

It will then give you a warning that this is irreversible. Acknowledging that will fully purge the Exchange attributes and let you start over.

I then updated the ms-DS-ConsistencyGuid to be correct, forced a sync via AzureAD Connect, wait for replication, and then enabled my account for Exchange. No new mailbox was created, as expected, and after a few hours the calendar tab showed up in my Teams client!




When doing maintenance on an Exchange server environment configured with a DAG, one of the things that you have to be aware of is how to temporarily remove one of the servers from the DAG before you disrupt any of the Exchange services (i.e. reboot) so that it doesn't inadvertently cause a failover of your databases or make some databases unavailable. Microsoft wrote a blog post a while back talking about the proper way to place an Exchange server into maintenance mode and it's a bit clunky - https://blogs.technet.microsoft.com/nawar/2014/03/30/exchange-2013-maintenance-mode/

Fortunately, there's a script readily available that takes care of most of this for you, including failing over the database to another Exchange server if needed. Located in 'Program Files\Microsoft\Exchange\V15\Scripts', take a look at the StartDagServerMaintenance.ps1 and StopDagServerMaintenance.ps1 scripts (and the RedistributeActiveDatabases.ps1 script. Running the script is simple, just pass the server name that you're starting or stopping maintenance on to their respective scripts and let PowerShell take care of the rest! Easy, no?

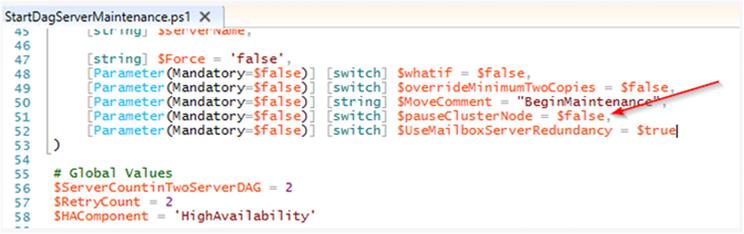

Well, sorta. You see, for a few versions now (including Exchange 2013 and Exchange 2016), the StartDagServerMaintenance.ps1 script has a typo in it – specifically the part of the script that actually pauses the node in the cluster. In the parameters, Microsoft has set "$pauseClusterNode" equal to "$false" instead of "$true".

Left alone like this, the cluster node will never be paused and potentially could cause issues when you reboot, not to mention that when you run the StopDagServerMaintenance.ps1 script, you'll receive a warning that "Call-ClusterExe: cluster.exe did not succeed" meaning it didn't do anything. Just change that parameter to "$true" and you're good to go.




While working with a customer who was searching for a solution to help manage distribution groups, I discovered that Exchange provides a feature called Dynamic Distribution Groups. These groups allow you to set up the distribution group, and then create a rule that references something like an OU or an AD account property to define which users belong to that group.

Here is a link to the TechNet article about Dynamic Distribution Groups:

https://technet.microsoft.com/en-us/library/bb123722(v=exchg.160).aspx

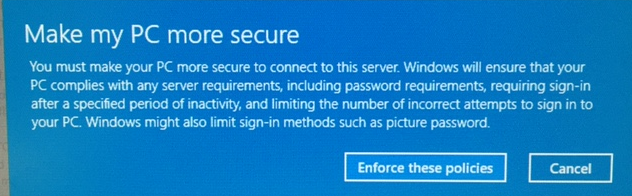

After installing Windows 10, I decided I wanted to try out the Mail Desktop App.  I added my Exchange  account in the Settings->Accounts-> Add account. After adding my credentials, I got this message:

This caused the Windows 10 lock out policy to be inherited from the policy that is a part of Exchange Activsync, which locks the device after one or three minutes (depending on the policies set up for Activsync).

By removing the Exchange account from the Windows 10 Mail app, it also removed the Activesync enforcement of lockout and hence the lockout times reverted to being controlled by the power manager application.




A user had a full mailbox, so they decided to archive old emails; however, when she would start the Archive process manually (under cleanup tools), it would appear to be working for a few seconds and then finish, but no emails would be transferred. The process would create the entire folder structure, but not place any files in any folder. Since her mailbox was full (i.e. she hit the Exchange storage limits for her mailbox), the Archiving process didn’t have enough space available to successfully move the emails from the mailbox to a local PST. I temporarily disabled the storage limit and she was able to archive a large quantity of her mailbox successfully.




If you want to receive large email attachments (up to 50 Mb) using Exchange, there are several places that need to be checked to make sure large attachments are allowed.

The first place is on the Exchange Server. Within the Exchange server, there are actually a few different places this will need to be set:

  • The first one is a global setting, in the Transport Settings (Organization Configuration/Hub Transport/Global Settings tab/Transport Settings properties/General tab).
  • The next place you'll need to look is in each receive connector (Server Configuration/Hub Transport/Tranport Server/Receive Connectors/Connector Properties/General tab).  Each connector has its own size limit.
  • The last place you'll need to check in Exchange is under the recipient's mailbox (Mail Flow Settings tab).

You may also need to make changes in other products (i.e. email filtering) as well.

  • If you have Barracuda filtering the default limit may already be set to 100 Mb.
  • If your customer has a ZixVPM/ZixGateway, the default limit may be 25 Mb, so it will need to be increased if you need to receive emails larger than that.
  • Finally, check your Firewall and/or Border router for any smtp inspection statements or smtp fixup.  If any of these exist it may prevent large emails (i.e. larger than 20 Mb) from getting through.



This may be old hat for people that work with Exchange on a regular basis. However, for the occasional Exchange tinkers among us, there is a way to run PowerShell functions that are specifically built for Exchange without having to run the Exchange Management Shell. [more]

  1. Open PowerShell on your workstation
  2. Use the "PSSession" commands to bring up a PowerShell instance that is pointed at the Exchange server:
    • $session = New-PSSession -configurationname Microsoft.Exchange -connectionuri http://<<Exchange server name>>/powershell -credential <<domain name>>\<<Exchange admin account>>
    • Import-PSSession $session
    • NOTE: the account used in the first command must be a member of one of the Exchange administrator groups in AD. Simply having Domain Admin rights is not enough. When the first command is run, a pop-up box will prompt you for the account's password.
  3. You can now run Exchange-specific PowerShell functions!






If you have difficulty scheduling meetings with multiple people outside of your company Exchange environment when you can't see everyone's calendar, take a look at ScheduleOnce.  It provides several scheduling options for organizing meetings with multiple people.  One option is to upload your calendar to Google Calendar, and others can see your availability without seeing any of the details of your appointments.  ScheduleOnce is free to try with a few basic features and more advanced features start at $5/month.

http://www.scheduleonce.com/




I was recently assigned a task to pull a list of users who use mobile devices for company email. I came across a neat website with several PowerShell commands listed to help generate the list.

http://www.msexchange.org/articles_tutorials/exchange-server-2010/management-administration/mobile-device-management-part2.html

There is a command to generate a device count of each type of device used.  There is also a command to generate six different .CSV files that can be used to see a list of users, emails received, type of device, device id, etc.




When Microsoft Exchange sends an e-mail, the message size may change due to the encoding used to package it. Messages with attachments can expand even more, since the only way to send e-mail attachments is to convert them from plain ASCII to MIME or UU-encode the message. Even if an attachment is smaller than the limits set in Exchange, it may not be accepted because its MIME-encoded or UU-encoded size is too big. This happens most often when limits are set for inbound SMTP mail. An incoming MIME-encoded e-mail with attachments can increase in size anywhere from 30% to 40%, depending on how many separate attachments, line breaks, MIME headers or other non-data elements are in the message. The exact size can vary enormously, especially since mail systems all behave a little differently when converting e-mail and attachments to MIME. The same problem exists in reverse, where messages sent from your domain will be constrained by message limit sizes on other hosts. Likewise, mail sent from your domain is going to expand anywhere from 30% to 40% in size when converted. [more]

A third-party program, such as UUDeview (http://www.miken.com/uud/), can help you find out just how much larger a MIME or UU-encoded version of a given file will be. (Note that this tool does not calculate things like message size overhead, but it can still be helpful.) The exact maximum incoming and outgoing message size is going to be up to the e-mail administrator, but should be set with these caveats in mind.

Also, take the time to explain to users that when they send attachments, they need to be mindful that messages will increase in size.
